Product Description

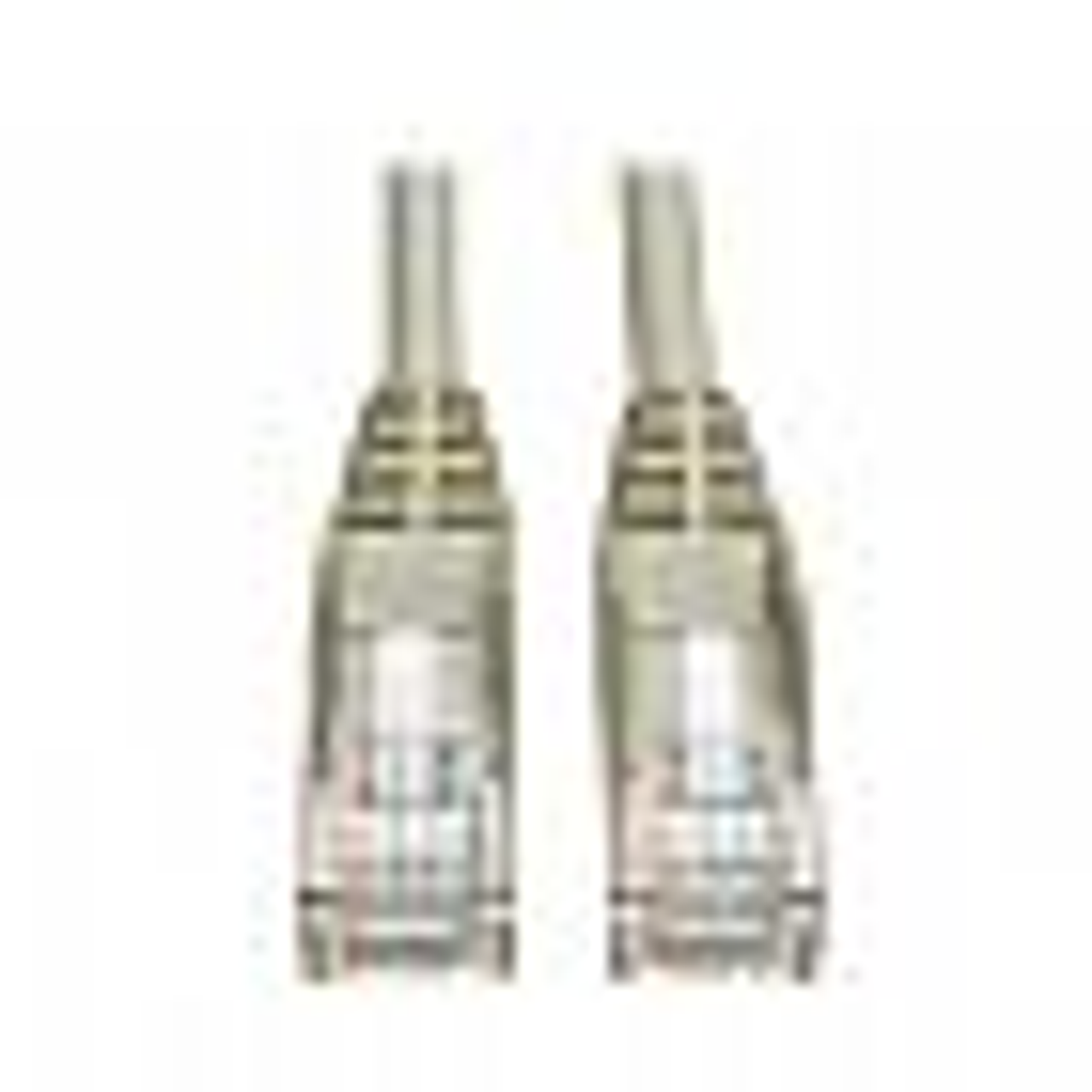

Tripp Lite's 100-ft. (30.5 m) gray snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair Solid Conductor UTP for improved long run performance and is rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard category 5e patch cables are also available.- UPC Code: 037332041890
- Technology: Cat5/5e
- Power Over Cable (PoC) Support: No
- Cable Jacket Color: Gray
- Cable Jacket Material: PVC
- Cable Jacket Rating: CM
- Cable Shielding: UTP
- Cable Outer Diameter (OD): 5.0 mm
- Number of Conductors: 4 Pair
- Conductor Material: Solid Copper
- Conductor Gauge: 26 AWG
- Cable Length (ft.): 100
- Cable Length (in.): 1200
- Shipping Dimensions (hwd / in.): 12.00 x 10.00 x 0.50
- Shipping Weight (lbs.): 2.20
- Operating Temperature Range: 14? to 104?F (-10? to 40?C)
- Storage Temperature Range: 5? to 122?F (-15? to 50?C)
- Operating Humidity Range: 0% to 90% RH, Non-Condensing
- Storage Humidity Range: 0% to 90% RH, Non-Condensing
- Bandwidth per TIA Standard: 100 MHz
- Maximum Bandwidth as Tested: 350 MHz
- Network Compatibility: 1 Gbps (Gigabit)
- IEEE Standards Supported: 802.3ab; 802.3at
- Side A - Connector 1: RJ45 (MALE)
- Side B - Connector 1: RJ45 (MALE)
- Contact Plating: Gold
- PoE Type: Type 2 PoE+ (30W, IEEE 802.3at)
- Connector Type: Molded; Snagless
- Wiring Configuration: EIA/TIA 568B
- Product Certifications: UL Listed; cUL Listed
- Product Compliance: CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA
- Product Warranty Period (Worldwide): Lifetime limited warranty
